Model
|
51.2V314Ah-HV
|
||||||||
|
Configuration
|
80K
|
96K
|
113K
|
129K
|
145K
|
161K
|
193K
|
209K
|
225K
|
|
Number of Battery Modules
|
5
|
6
|
7
|
8
|
9
|
10
|
12
|
13
|
14
|
|
Electrical Parameters
|
|||||||||
|
Nominal Voltage (V)
|
256
|
307.2
|
358.4
|
409.6
|
460.8
|
512
|
614.4
|
665.6
|
716.8
|
|
Operating Voltage (V)
|
232~288
|
278.4~345.6
|
324.8~403.2
|
371.2~460.8
|
517.6~518.4
|
464~576
|
596.8~691.2
|
603.2~748.8
|
649.6~806.4
|
|
Total Energy Capacity (kWh)
|
80.38
|
96.46
|
112.54
|
128.61
|
144.69
|
160.77
|
192.92
|
209
|
225.08
|
|
Discharge Depth (90% DOD, kWh)
|
72.34
|
86.81
|
101.29
|
115.75
|
130.22
|
144.69
|
173.63
|
188.10
|
202.57
|
|
Max Current
|
200A
|
||||||||
|
Max Power
|
10240W*Battery Module Number
|
||||||||
|
General Parameters
|
|||||||||
|
Cabinet Dimensions (W×D×H, mm)
|
776*577 *1505
|
776*577*1725
|
776*577*1945
|
(776*2)*577*1285
|
(776*2)*
577*1285 |
(776*2)*
577*1505 |
(776*2)*
577*1725 |
(776*2)*
577*1725 |
(776*2)*
577*1945 |
|
Weight (kg)
|
630
|
746
|
862
|
1028
|
1144
|
1260
|
1492
|
1588
|
1724
|
|
Battery Type
|
Lithium Iron Phosphate (LiFePO4)
|
||||||||
|
Max Parallel Units
|
4 Sets
|
||||||||
|
Cooling Mode
|
Fan Cooling
|
||||||||
|
Protection Level
|
IP20
|
||||||||
|
Discharge Temp Range
|
-20℃~60℃
|
||||||||
|
Charge Temp Range
|
0℃~60℃
|
||||||||
|
Storage Time (Static)
|
≤25℃: 12 months; ≤35℃: 6 months; ≤45℃: 3 months
|
||||||||
|
Operating Humidity
|
≤85% RH
|
||||||||
|
Storage Humidity
|
≤85% RH
|
||||||||
|
Operating Altitude
|
<2000m
|
||||||||
|
Communication Ports
|
CAN, RS485, Wi-Fi
|
||||||||
|
Certifications
|
CE, UN38.3, MSDS
|
||||||||
|
Cycle Life
|
≥8000 cycles
|
||||||||
|
Warranty
|
5 Years
|
||||||||
|

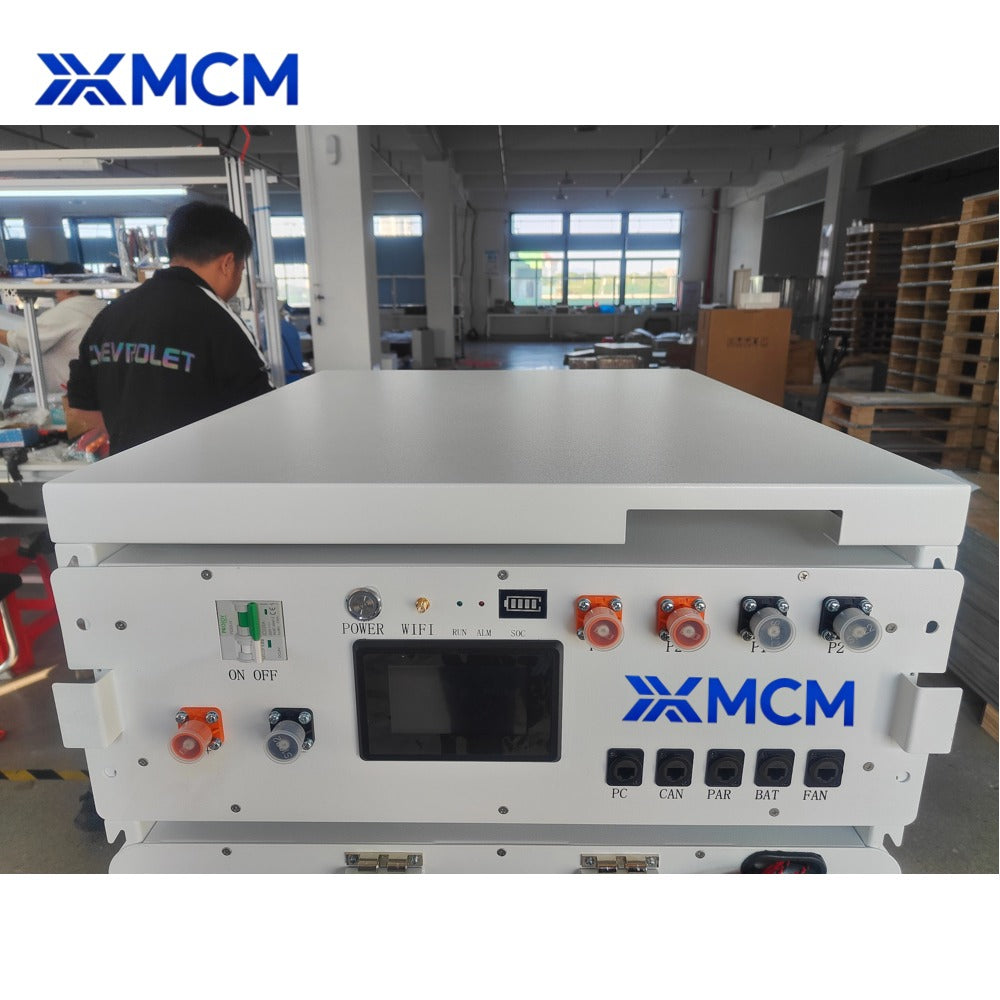

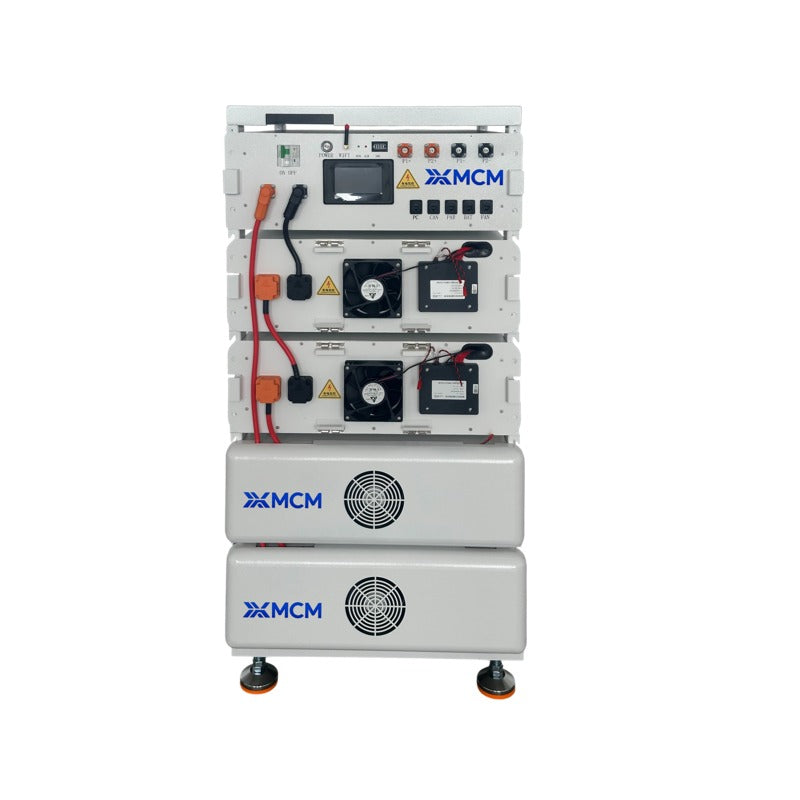

BCU Port Introduction
|
|||||
|
NO.
|
Name
|
Description
|
NO.
|
Name
|
Description
|
|
1.
|
ON/OFF
|
Cut-off protection switch
|
2.
|
POWER
|
Power switch
|
|
3.
|
WIFI
|
Wireless WIFI module
|
4.
|
RUN
|
Normal operation indicator
|
|
5.
|
ALM
|
Fault alarm
|
6.
|
SOC
|
Battery level indicator
|
|
7.
|
P1+
|
Connect to inverter positive port
|
8.
|
P2+
|
Connect to inverter positive port
|
|
9.
|
P1-
|
Connect to inverter negative port
|
10.
|
P2-
|
Connect to inverter negative port
|
|
11.
|
B+
|
Connect to battery positive port
|
12.
|
B-
|
Connect to battery negative port
|
|
13.
|
|
Color touch screen
|
14.
|
PC
|
Computer debugging port
|
|
15.
|
CAN
|
Inverter communication port
|
16.
|
PAR
|
Parallel communication port
|
|
17.
|
BAT
|
Battery module communication port
|
18.
|
FAN
|
Cooling fan power port
|
|

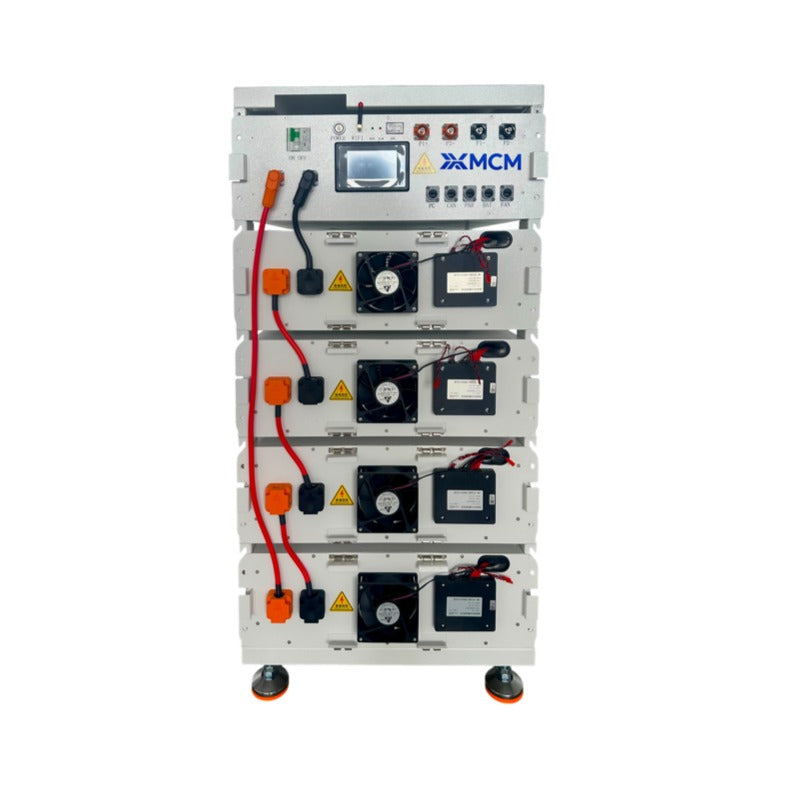

Single Battery Module Parameters
|
||
|
Rated Voltage
|
51.2V
|
|
|
Rated Storage Capacity
|
314Ah
|
|
|
Reference Weight
|
112kg
|
|
|
Reference Dimensions (W×D×H)
|
771×550×200 (mm)
|
|
|
NO.
|
Name
|
Description
|
|
1.
|
B+
|
Battery positive port (Orange)
|
|
2.
|
B-
|
Battery negative port (Black)
|
|
3.
|
FAN
|
Cooling fan
|
|
4.
|
BMU
|
Battery module subordinate BMS
|
